Multi Cavity Thermal Break Profile Nylon 66 Heat Insulation Strip Polyamide Building Material

Name: Multi Cavity Thermal Break Profile Nylon 66 Heat Insulation Strip Polyamide Building Material
Brand: Polywell
Price: 0.25 USD

Place of Origin : China

Brand Name : Polywell

Model Number : PW-HK

Supply Ability : 100000 Meters per day

MOQ : 5000 Meters

Price : USD 0.25-0.38 /m

Packaging Details : Linear or Roll

Delivery Time : 15-20 Working Days

Payment Terms : T/T

Certification : SGS

Material : Polyamide66 Reinforced by 25%Glass Fiber

Color : Black

Application : For Thermal Break Aluminum Profile

Port : Shanghai

Refractoriness : 230-255°C

Apparent Density : 1.25-1.35 g/cm3

Production Capacity : 100000 Meter per Day

Technical Performance : GB/T 23615.1-2009

Life : More Than 40 Years

Transport Package : Roll or Linear

Contact Now

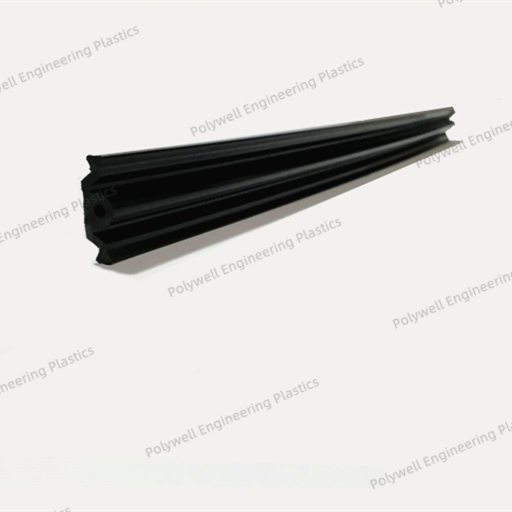

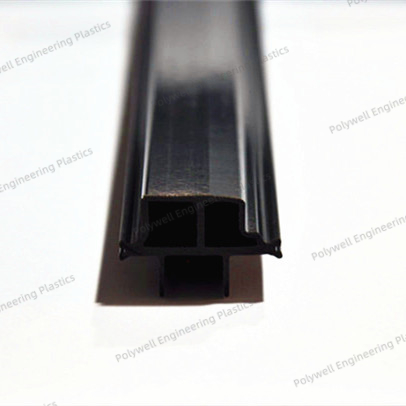

HK 14.8-35.3mm Nylon Thermal Break Insulator

Production Description
Multi-cavity polyamide profile for windows and doors. Used on curtain wall system, or in facade system, and being the part of energy-saving window system for reducing heat conduction. Shapes can be customized, we're majored in developing polyamide profiles for window system.

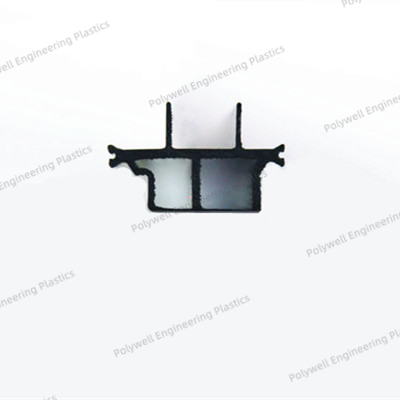

For the shape HK, we can provide the following size or customize according to customers' requirements.

Over the years, polyamide heat-insulation strip has been widely used in glass curtain walls due to its good properties and low cost. Especially Polyamide 66 reinforced by 25% glass fiber thermal break strips, they are inserted into aluminum window, door and facade profile for thermal insulation.

Advantages
1.Effectively increased thermal in the system property insulation.
2.Reduces condensation on the window.
3.Sound insulated.
4.Improve comfort and living condition.
5.Possible double color coatings provide better aesthetic effect.
6.Various shapes will be designed for the customer's requirements.
7.The working temperature of the thermal insulation strip is 220°C, Melting Point reaches to 246°C. This enables coating process after assembly of composite profiles.
8.High corrosion-resistance, weather-resistance, heat-resistance, alkali-resistance and long life of usage.
9.linear thermal dilation coefficient almost identical to that of aluminium profiles.

Polywell PA66 GF25 thermal barrier strips Performance Table

NO.	Item	Unit	GB/T 23615.1-2009	Technical specification
	Material Properties
1	Density	g/cm3	1.3±0.05	1.28-1.35
2	Linear expansion coefficient	K-1	(2.3-3.5)×10-5	(2.3-3.5)×10-5
3	Vicat softening temperature	ºC	≥230ºC	≥233ºC
4	Melting point(0.45MPa)	ºC	≥240	≥240
5	Testing for tensile cracks	-	No cracks	No cracks
6	Shore hardness	-	80±5	80-85
7	Impact strength(Unnotched)	KJ/m2	≥35	≥38
8	Tensile strength(longitudinal)	MPa	≥80a	≥82a
9	Elasticity modulus	MPa	≥4500	≥4550
10	Elongation at break	%	≥2.5	≥2.6
11	Tensile strength(transverse)	MPa	≥70a	≥70a
12	High temperature tensile strength(transverse)	MPa	≥45a	≥47a
13	Low temperature tensile strength(transverse)	MPa	≥80a	≥81a
14	Water resistance tensile strength(transverse)	MPa	≥35a	≥35a
15	Aging resistance tensile strength(transverse)	MPa	≥50a	≥50a

1.Sample water content less than 0.2% by weight.
2.Norm laboratory condition:(23±2)ºC and (50±10)% relative humidity.
3.The specifications marked with "a" only applies to I-shape strip otherwise, the specifications concluded between supplier and buyer through consultation, shall be written in contract or purchase order.

Storage Conditions

The strips will be stored in the ventilated and dry environment, horizontally placed, paying attention to waterproof, keeping away from the heat source, avoiding heavy pressure and the contact with acid, alkali as well as organic solvent.

Delivery

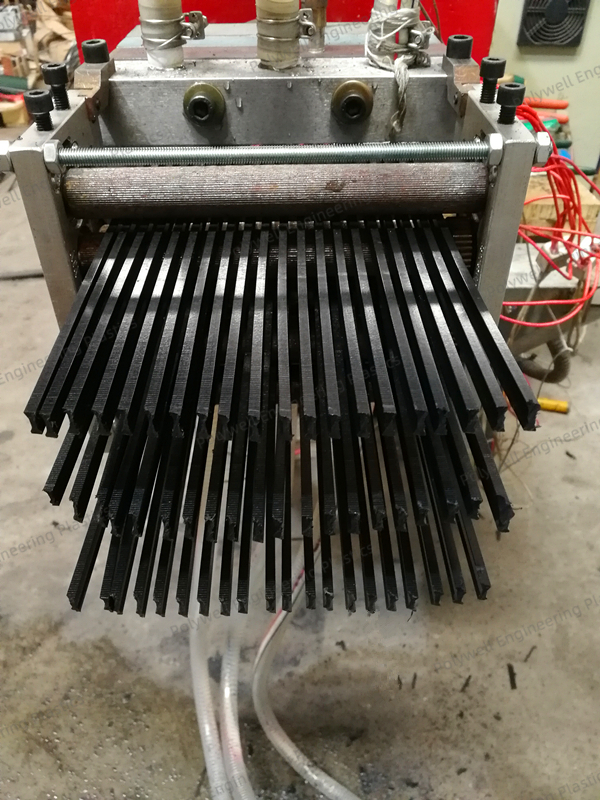

We have the production capacity of 100,000 meters per day. For common specifications, we have molds , and will be shipped in 10-20 working days after receiving the deposit.

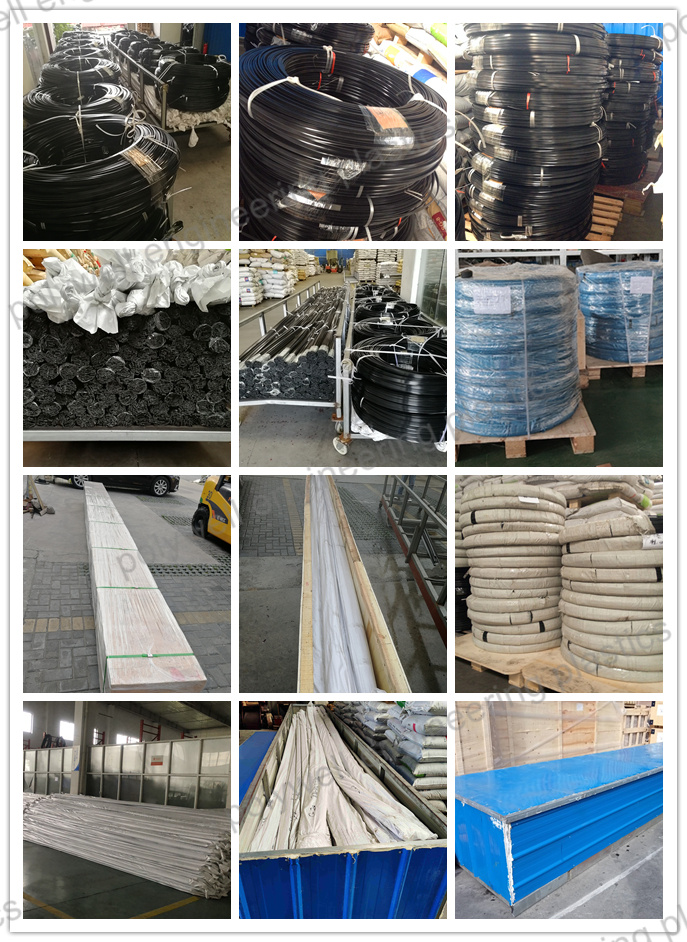

Packages

For all specifications/shapes, they could be packaged in linear, the length will be 6 meters, or customized.
For the Shape "I", "C", and some simple shapes, they can be packed in rolls. 400-600 meters/roll.

Our Service

1. Expertise in the production of standard polyamide thermal break strips.
2. Respect customers' needs, provide customized products, try best to satisfy customers' requirements.
3. Fast service and on-time delivery
4. Strict quality control system, each production process will be strictly supervised by us.
5.We can provide all products on the insulation strip production line and the technical support.
